    Robert Welland
    Dec 06, 2019
      ·  Edited: Dec 06, 2019

    Bob’s Build Log (Seattle)

    in Robot Builds

    Nothing exhaustive but I’ll try to include useful stuff as well as general progress.

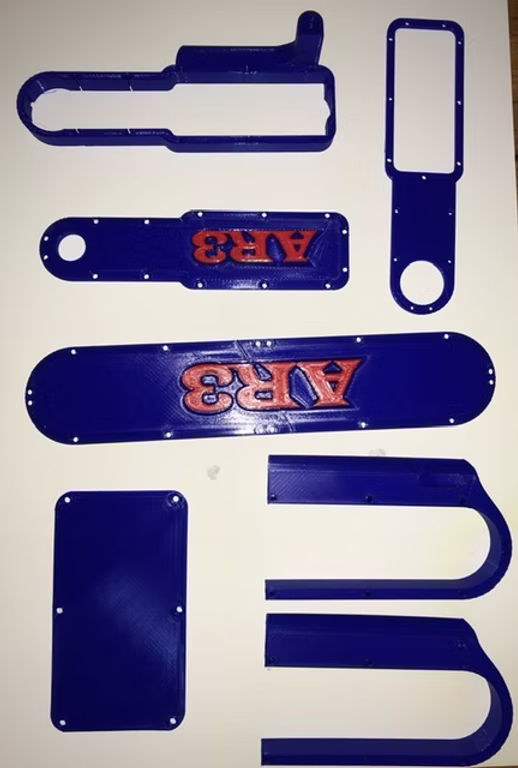

    Most of the 3d printed parts ... not sure I like the colors but it was the least offensive of the filament I had sitting around




    16 comments
    0
    Robert Welland
    Dec 06, 2019

    Most of the 3d printed parts were done on my Makergear 2. It did them without any issues, which was nice.




    0
    Robert Welland
    Dec 06, 2019

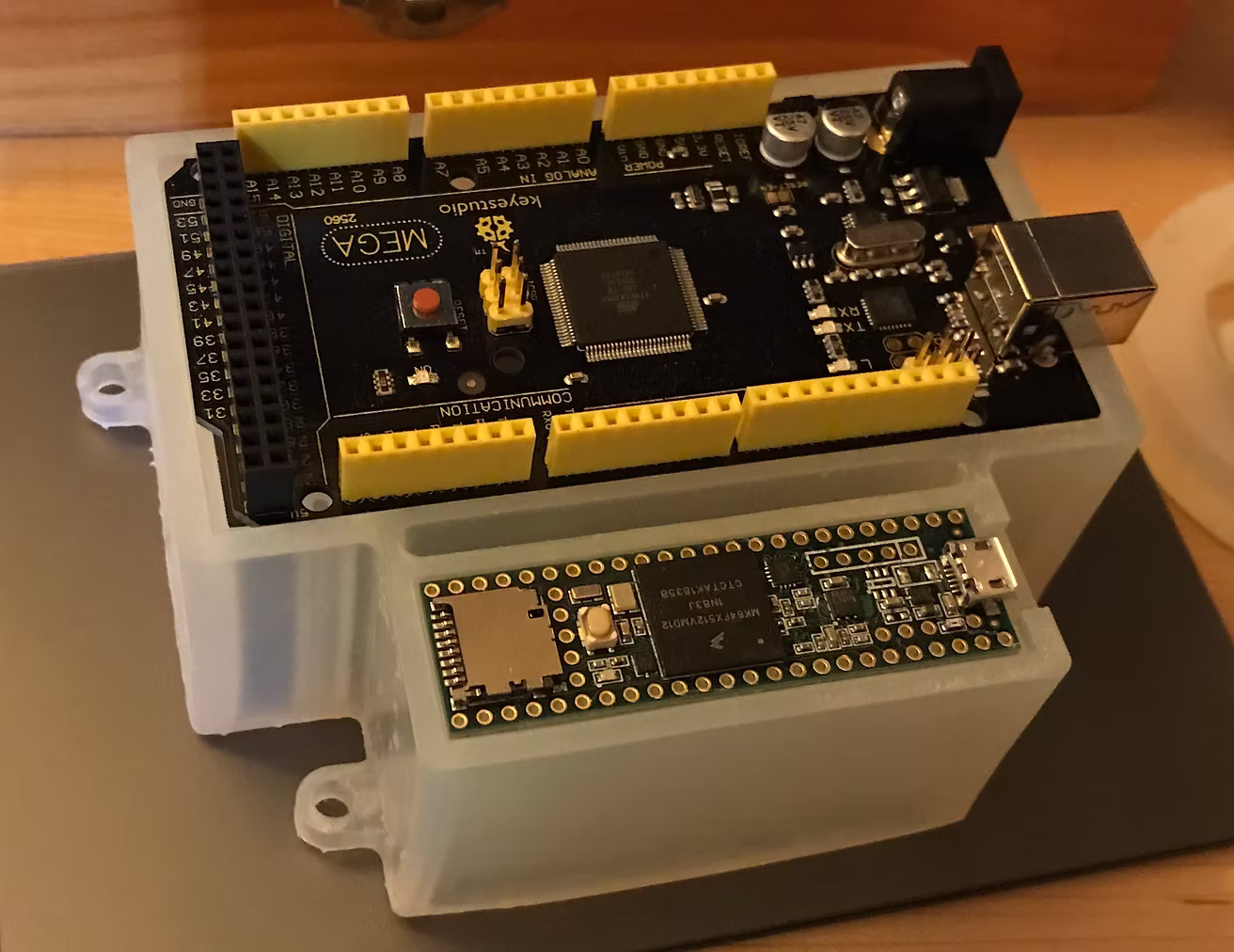

    I started printing things on a Formlabs Form 3 but it’s work volume is too small for the bigger pieces and it is kind of overkill. I did print a few things, such as the controller mounting box:




    0
    Robert Welland
    Dec 06, 2019

    I broached all of the gears with a little setup. The arbor press was too small so I had to improvise with some steel rods and a C-clamp:




    0
    Robert Welland
    Dec 06, 2019

    Using my sensitive drill press to drill the set screws:




    0
    Robert Welland
    Dec 06, 2019

    OK, it is driving me nuts that this blog is rotating my pictures but provides, at least on my iPad, any means to rotate them into a reasonable orientation (as far as I can figure out). Sorry for the sloppy posts.


    0
    Robert Welland
    Dec 06, 2019

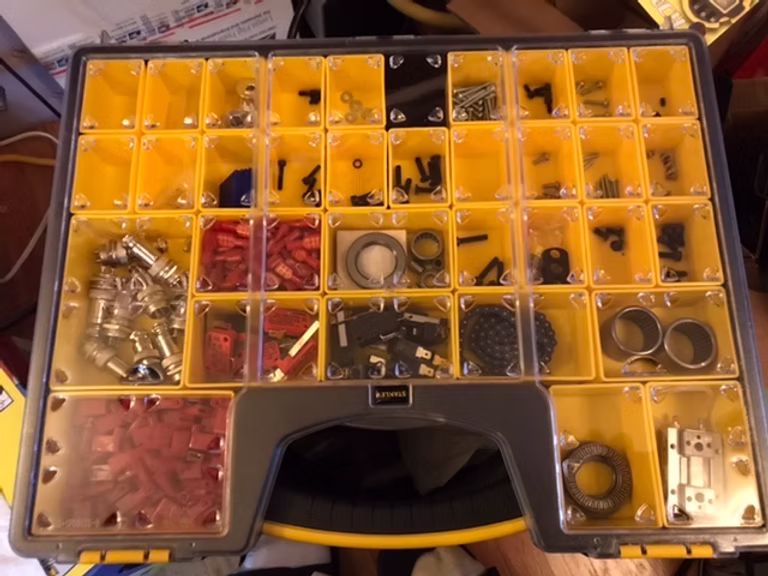

    I found it very handy to store parts in an orderly way as I do the build. These cases are nice because the storage bins are removable boxes:




    0
    Robert Welland
    Dec 06, 2019

    Current state of things:




    0
    guy
    Dec 06, 2019

    Great pics Robert! Thanks for sharing

    0
    Chris Annin
    Dec 06, 2019

    Looks great, thank you.

    0
    Robert Welland
    Dec 06, 2019

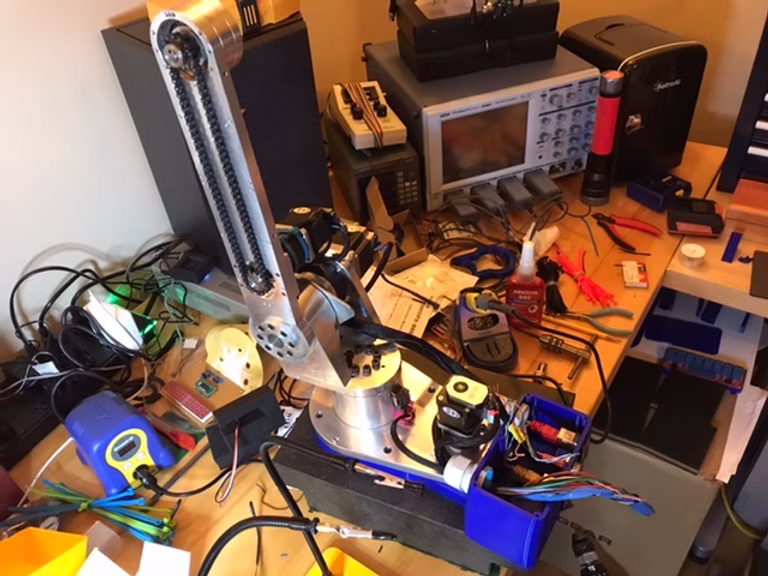

    Third axis and wiring for J1, J2, and J3 almost done. Waiting for some keystock before greasing and covering up the chain drive.


    Robert Welland
    Dec 20, 2019

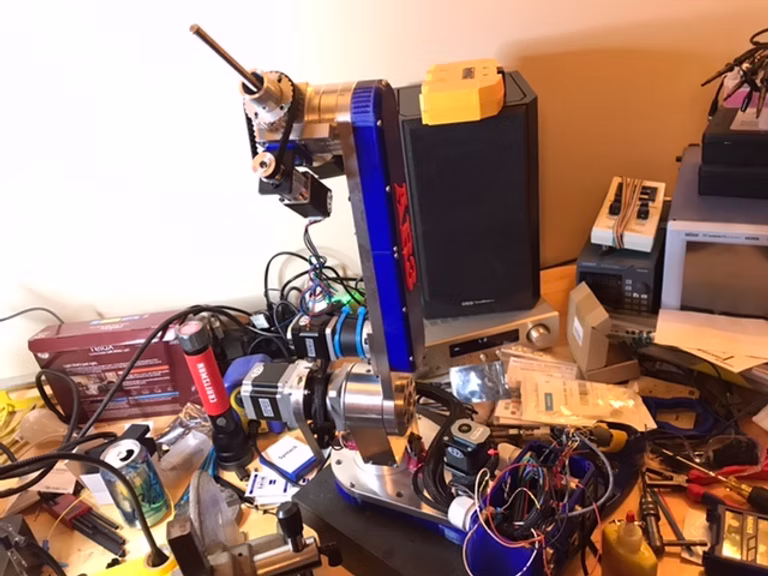

    Working on the fifth axis



    0
    Robert Welland
    Dec 20, 2019

    I got frustrated with the 3mm linear bearing rails. I could not correct them to a uniform thickness. I ordered some linear rail stock from McMaster Carr. Hopefully, that will be less frustrating.

    0
    Robert Welland
    Mar 31, 2020

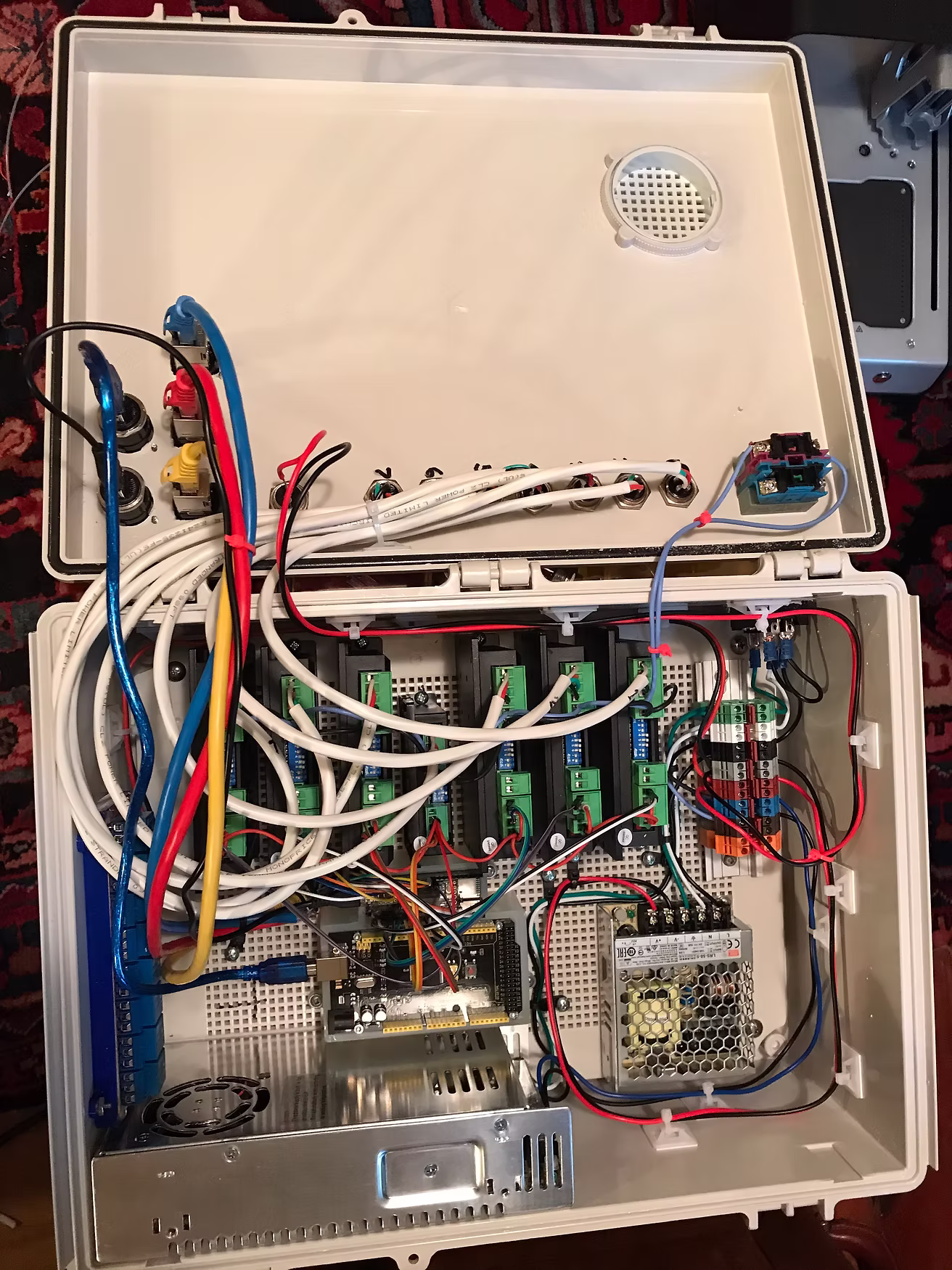

    Stuck in the house because of Covid-19 (I don’t have it yet but Seattle is shut down). Basically done with the control box


    0
    Chris Annin
    Mar 31, 2020

    looks good. Were shut down here too. Im one of a few people still in the shop but most of the city is working from home. Stay safe.

    0
    Robert Welland
    Apr 09, 2020

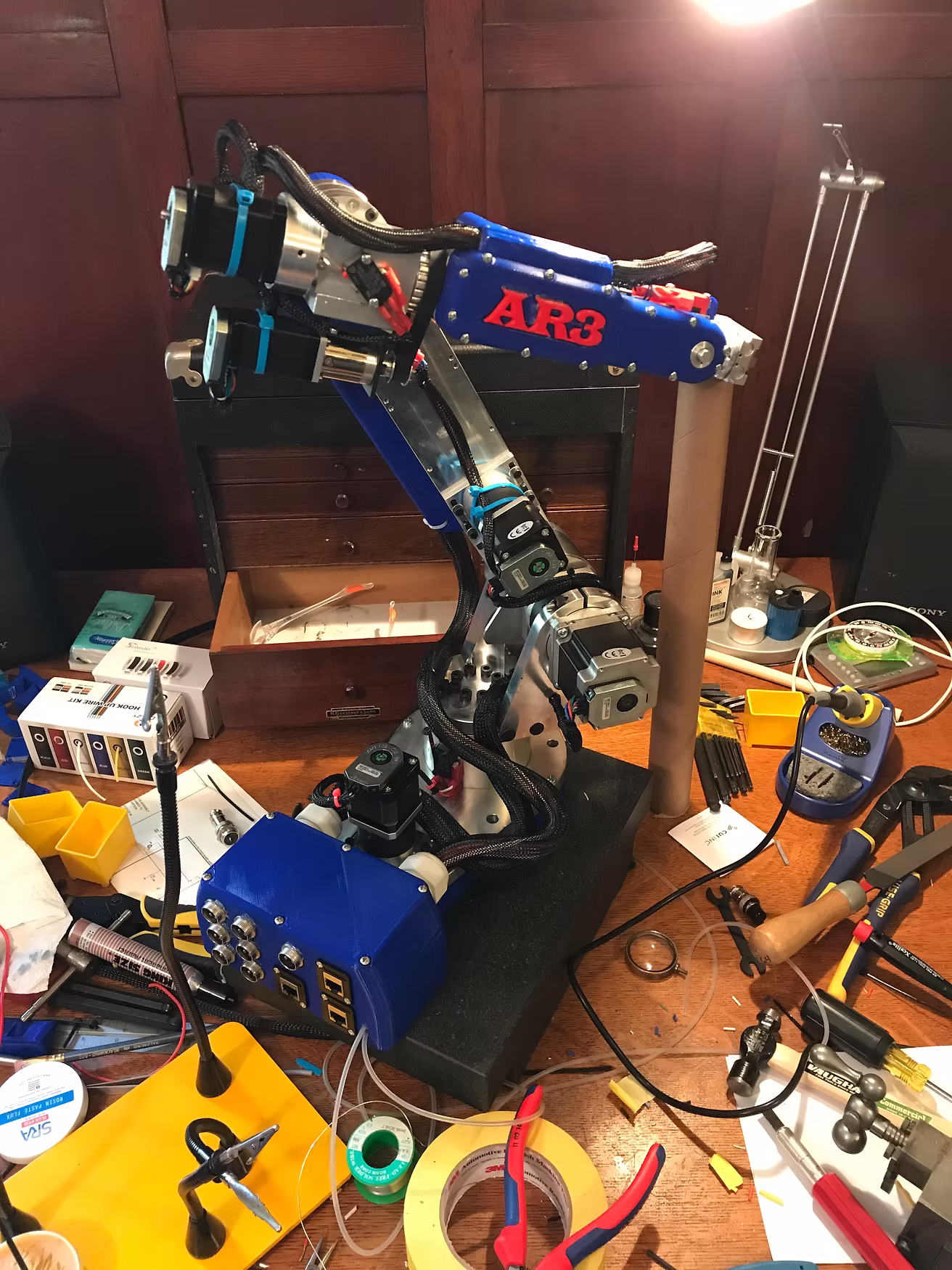

    Robot mechanical all complete, control box, and cables built. Next step firing it up. I’ll spend a bunch of time checking things ... hopefully, movement in a few days.

    Robert Welland
    Apr 09, 2020

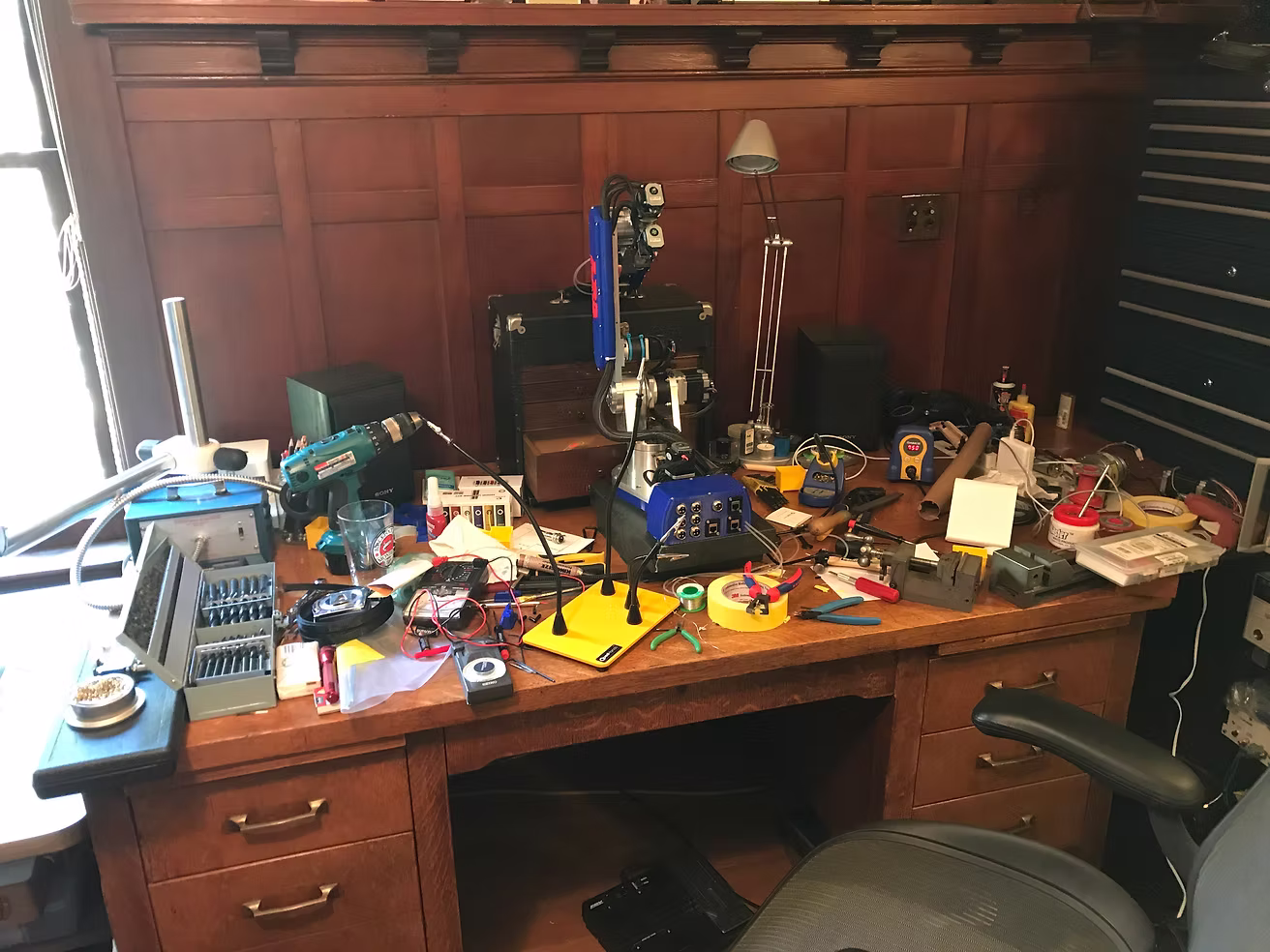

    Lots of tools used
