Alessandro Chitè
May 10, 2019

AR2 from Italy

Hi all, here are my first steps to the robot costruction. I am also a mechanical hobbyst so I will realize all

the alluminium parts.

Thank you Chris for your great job.







54 comments3 replies
Chris Annin
May 11, 2019

Awesome, thank you for sharing. keep the updates coming.

0
Mitchell Lichtenberg
May 18, 2019

Hi Alessandro,



Wow, you're going to make the parts yourself! Please post pictures of your setups; I looked into this and studied the type of fixturing I'd need to make these parts on a 3-axis CNC and realized it'd be difficult without a 5-axis machine.



Still, your J2 housing looks awesome! Definitely would like to learn more about how you approach each part.



I did a quick study before I started my build about how I would cut these parts with a 3-axis CNC, manual mill, and lathe, I can post the spreadsheet somewhere if it would be interesting to you.



/Mitch.



1
Alessandro Chitè
May 19, 2019

Hi Mitch,

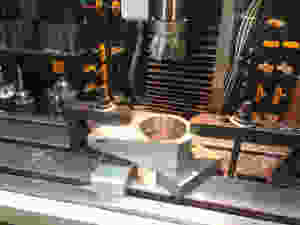

here is an example.

I make only one part for me, so I am using my cnc milling machine into “semi-automatic“ mode.





1
Paul
May 21, 2019

Congratulazioni. Lavoro fantastico



Thank you for sharing. I particularly like the surface finish of your parts.



Would love to see more videos and photos if you have them.

0
Chris Annin
May 27, 2019

Awesome. thank you for the update.

0
