    Michel Schneiderman
    May 21, 2021

    J5 Limit swich - robot assembly

    in Questions

    Hi!


    I have a problem with the J5 limit swich...


    when I move the J5 motor it does not make the limit swich's button to "click" (NO TO NC), the limit swich gets "stuck" between the housing and the j5 carrier.


    maybe somebody had a similar problem with this parts of the assembly?




    12 answers2 replies
    0
    1
    Michel Schneiderman
    Best Answer
      ·  May 21, 2021

    What i understand that it is happening is that the j5 carrier get stuck when it reaches the limit swich. If I loose the screws the carrier will drag the limit switch and will get stucl betwwen the carrier and the housing.

    In both cases the carrier is not moving the lever of the limit switch.

    1
    annonuser2
    May 21, 2021

    I had a similar sounding issue as well but managed to correct it. Can you post a pic or two of your J5 limit switch and the housing setup?

    1
    Michel Schneiderman
    May 21, 2021

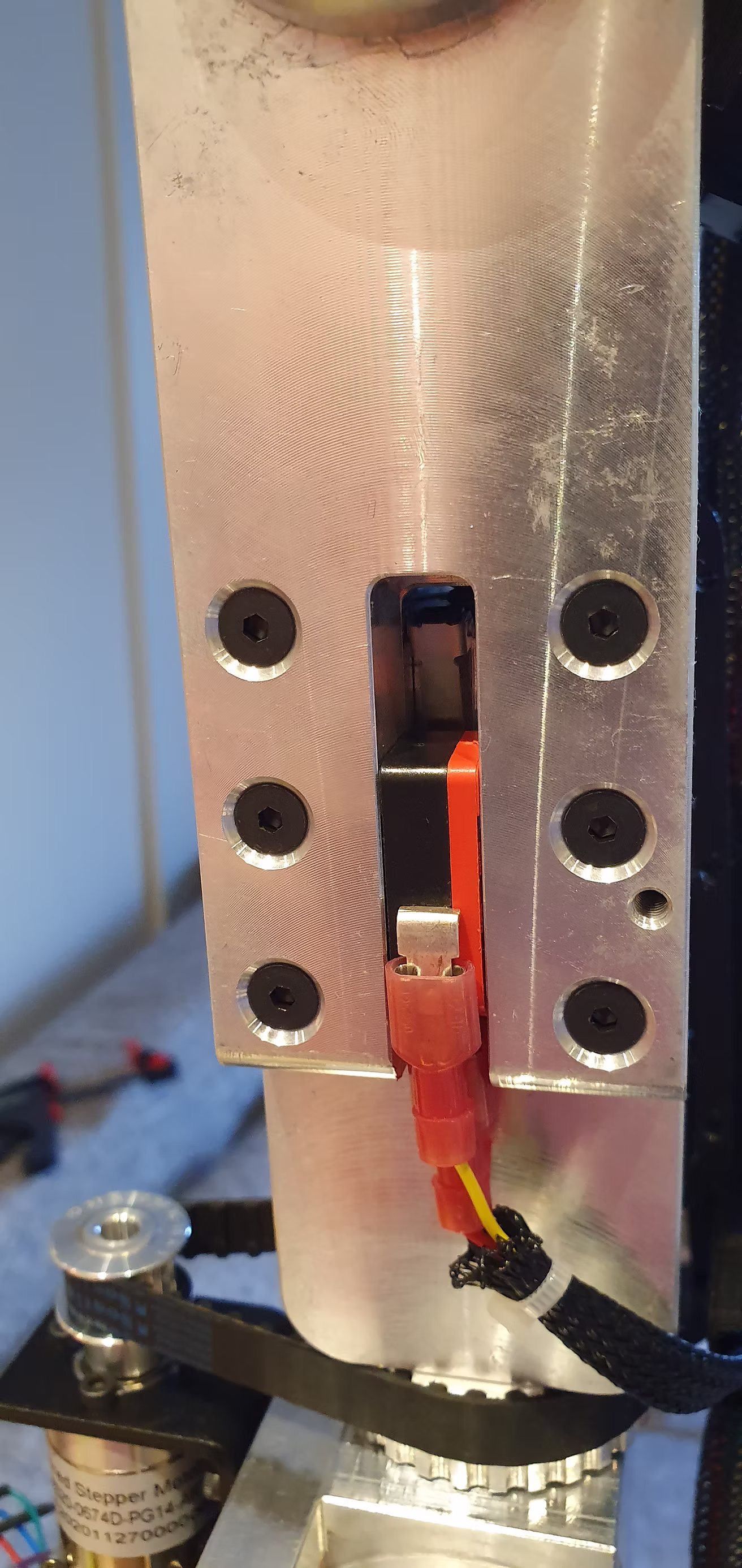

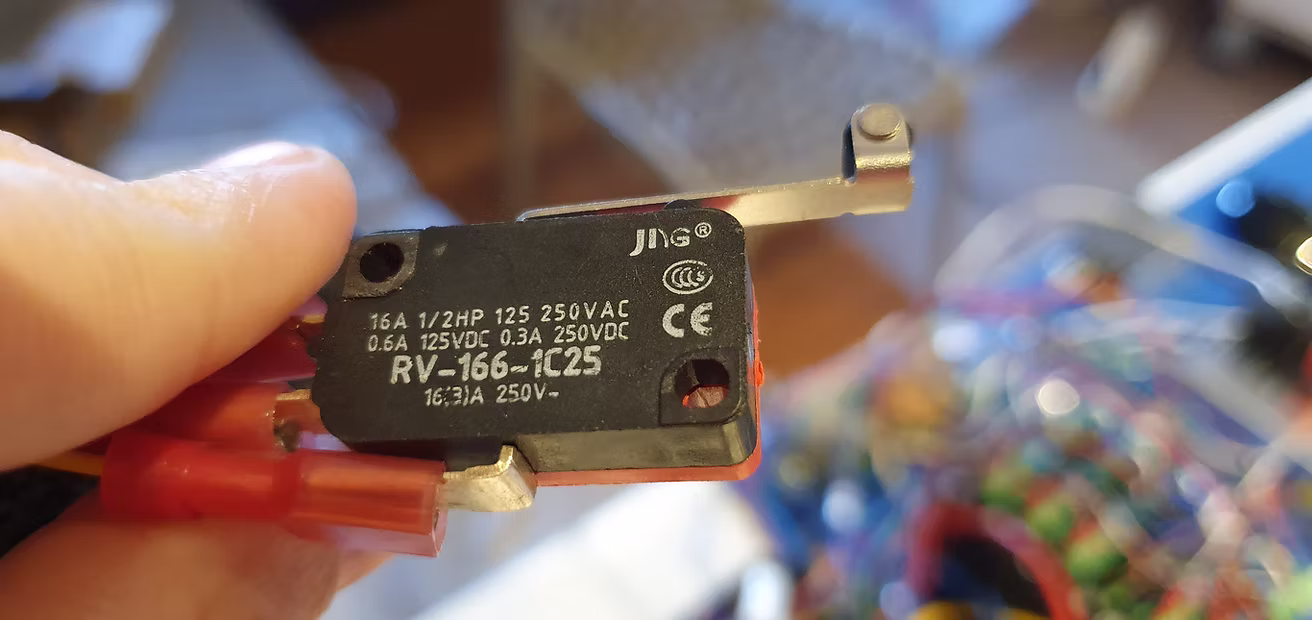

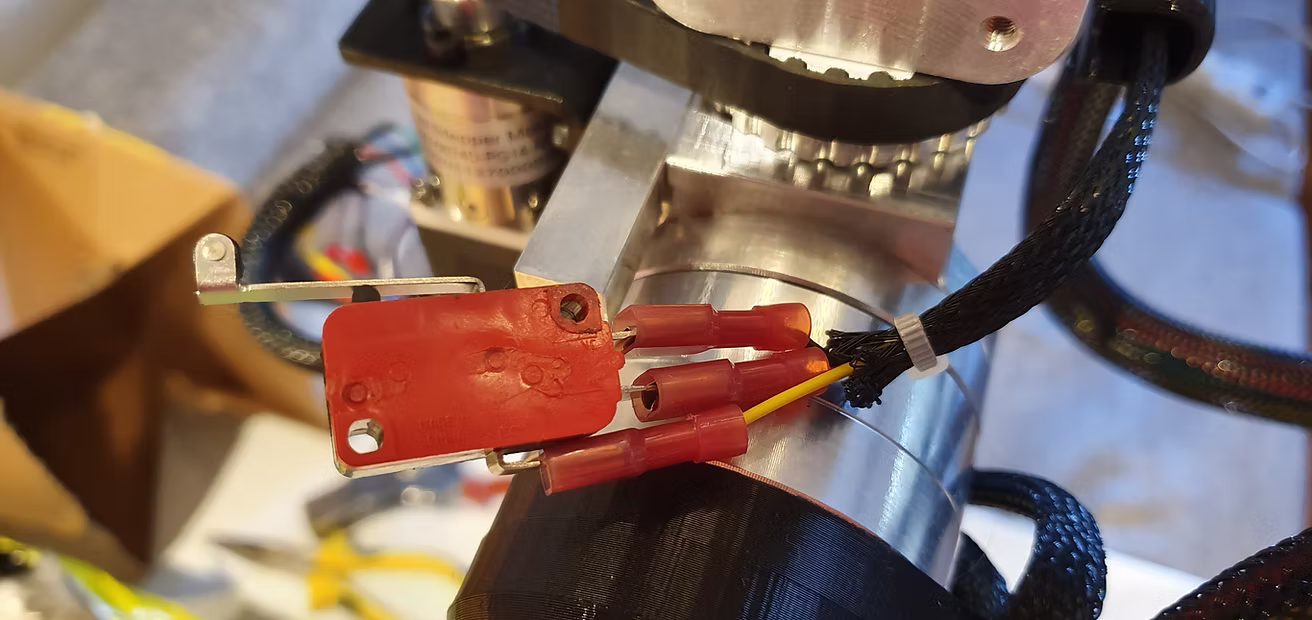

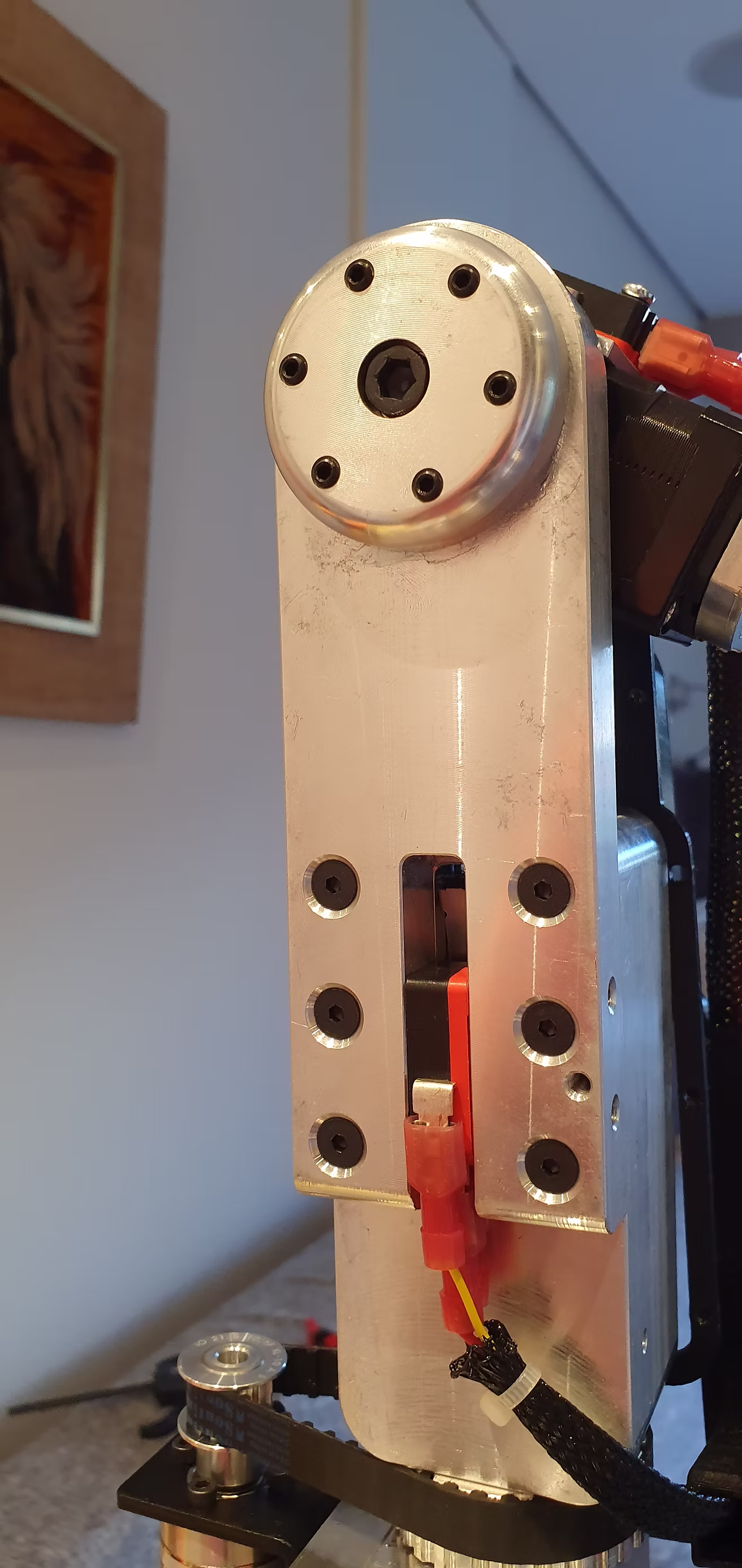

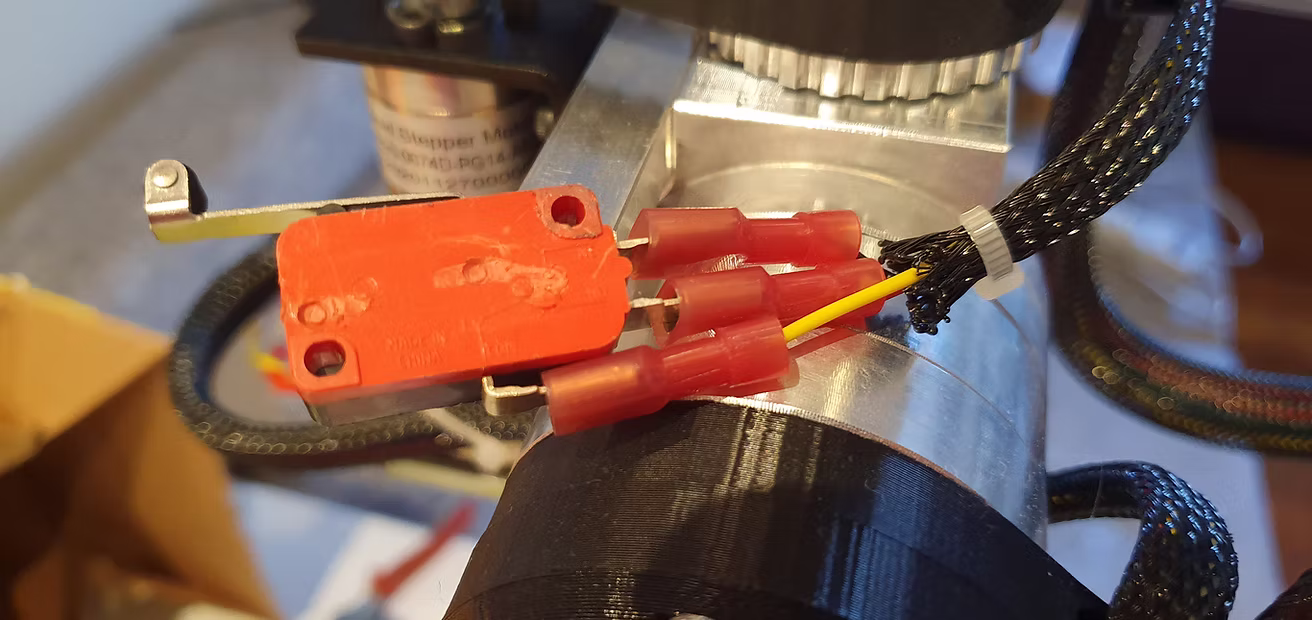

    Hi! Of course, if the pictures dont help you i can take more of them.


    20210521_152658
    .jpg
    Download JPG • 2.08MB

    20210521_152629
    .jpg
    Download JPG • 2.12MB

    20210521_152621
    .jpg
    Download JPG • 1.74MB

    20210521_152438
    .jpg
    Download JPG • 1.58MB

    20210521_152352
    .jpg
    Download JPG • 1.51MB

    20210521_152159
    .jpg
    Download JPG • 1.99MB

    20210521_152123
    .jpg
    Download JPG • 2.23MB

    20210521_152027
    .jpg
    Download JPG • 2.14MB

    1
    Michel Schneiderman
    May 21, 2021

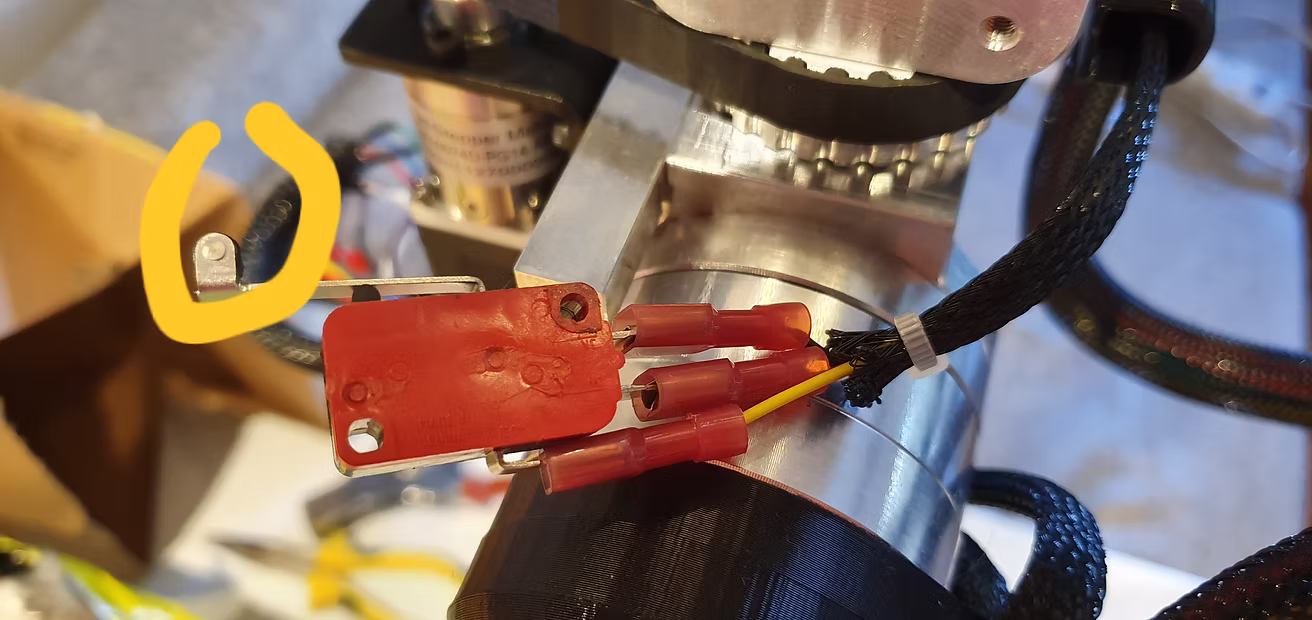

    Maybe if I cut this part of? What do you think?

    20210521_153244
    .jpg
    Download JPG • 2.90MB

    1
    annonuser2
    May 21, 2021  ·  Edited: May 21, 2021

    Nope, don't cut that off buddy. Give me one min. while I redo your pics.










    1
    annonuser2
    May 21, 2021  ·  Edited: May 24, 2021

    In the future, when you post pics, down by the blue "Answer" button there is a few icons. Simply click on the camera and your pics will upload to the forum so that people don't have to download all your pics individually.


    Michel Schneiderman
    May 21, 2021

    @annonuser2 thank you for this tip, next time i will upload as you

    1
    annonuser2
    May 21, 2021  ·  Edited: May 21, 2021

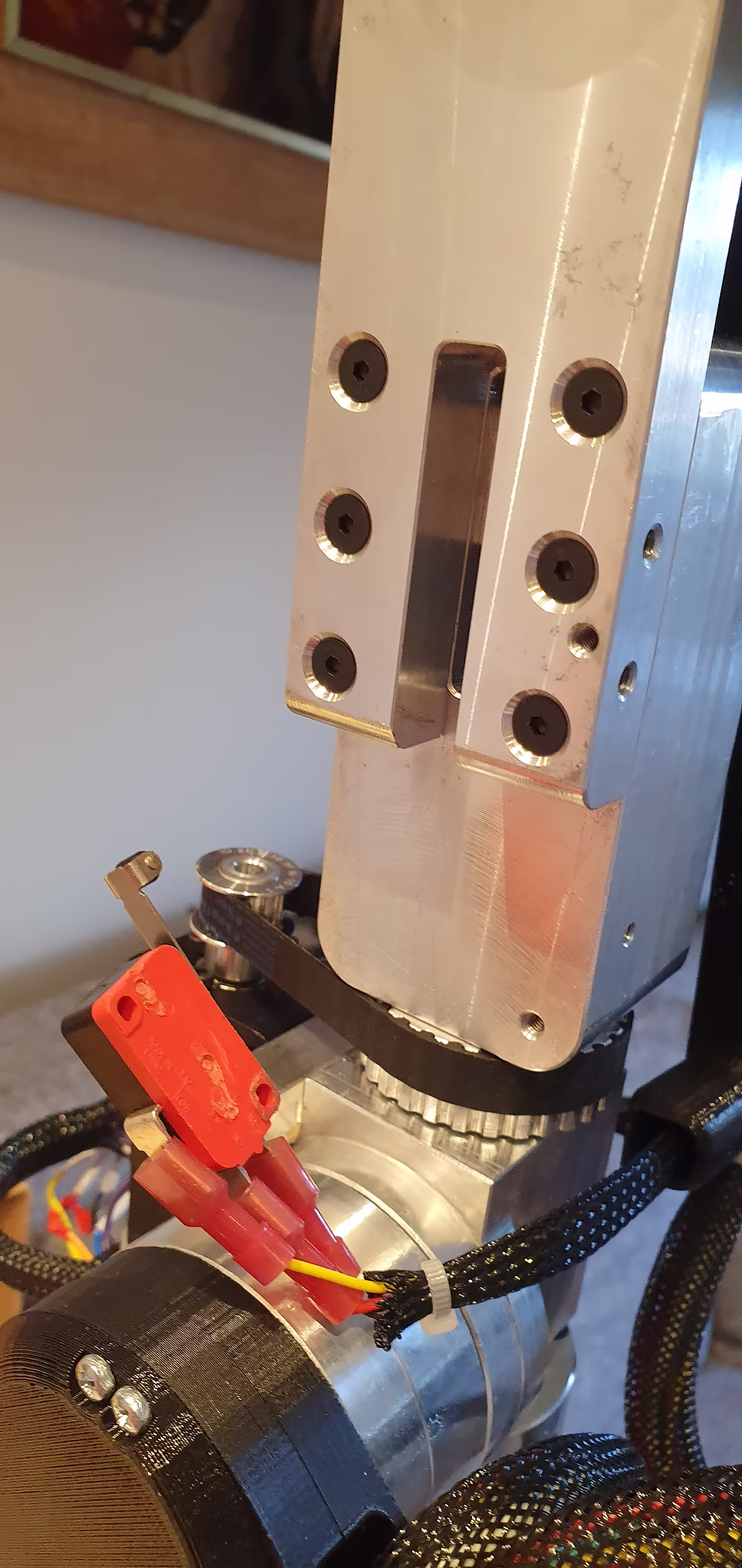

    Oh I see now. So it looks as if your J5 limit switch roller is getting stuck on the aluminum frame of the housing? Is that it?

    Would it be possible for you to insert the J5 limit switch again (making sure to loosen your set screws formerly holding it place) but this time, sliding the J5 limit switch down, more towards the black belt behind it? This should allow you a bit of wiggle room in order for the lever to move freely.

    1
    annonuser2
    May 21, 2021  ·  Edited: May 21, 2021

    I also had this problem with my build.

    What I did was have my girlfriend hold the J5 limit switch in place by hand (loosening the set screws) while I moved the carrier back and fourth with my hands.

    We kept adjusting the limit switch's position a little bit at a time as I would move the carrier. We eventually found a sweet spot where the carrier would travel to the end position and the limit switch's lever was pressed in.

    1
    annonuser2
    May 21, 2021  ·  Edited: May 21, 2021

    Taking a few pics now of my J5 limit switch location to see if that'll help you position yours.

    (Make sure to leave a gap between the J5 limit switch roller and the housing)



    1
    Michel Schneiderman
    May 21, 2021

    I will try your way! And i will let you know how it

    1
    Michel Schneiderman
    May 21, 2021

    Thank you for your help !

    1
    annonuser2
    May 21, 2021

    You're welcome sir. Good luck!

    Michel Schneiderman
    May 23, 2021

    It worked! thank you!
