    jasonzzpro
    Feb 07, 2021

    about auto calibrate

    in General Discussion

    Hi @Chris Annin


    I have a problem with auto calibration


    My steps are as follows:


    1, Press the emergency stop button

    2, Manually restore ARM to Rest Position

    3,Then "SAVE CALIBRATION DATA"

    4,Release the emergency stop button

    5,Then click "Auto Calibrate"


    Then the arm will start to move, and then it will touch the limit switch, and then stop, and then it seems that the arm wants to return to the original "rest position", but after about 1 second, it moves to the touch limit again The position of the switch then stopped, not like in the tutorial video. After the calibration is completed, return to the Rest Position. Then I found out that at this moment, Teensy's yellow light was on. Does this mean something is wrong?


    10 comments
    0
    jasonzzpro
    Feb 07, 2021

    I shot a video to describe the problem




    0
    Chris Annin
    Feb 08, 2021

    The calibration is programmed to drive to all the switches at a faster speed and then retract off the switches a little and then slowly drive back to the switches for a more accurate calibration - your video looks correct except that after all the switches are made the second time at a slow speed the robot should then return to the rest position and then calibrate axis 6. Can you tell me if you have any errors on the screen or log after the robot stops on the limit switches?

    0
    jasonzzpro
    Feb 08, 2021

    @Chris Annin Thank for you answering, The ARCS software itself did not indicate any errors. After the calibration was completed, the Teensy light was on (continuously on), and the arm would not return to the rest position.

    0
    jasonzzpro
    Feb 08, 2021

    Very confused, I don't know which step is wrong.

    0
    jasonzzpro
    Feb 08, 2021

    I carefully studied your video tutorial again, and I found one of the differences. In your tutorial video, J6 waits for the arm to return to the rest position before starting calibration, but in my video, it is different. Yes, J1-J2... -J5 did not return to the Rest Position, and then J6 started calibration.

    0
    jasonzzpro
    Feb 08, 2021

    SOS..😂

    0
    jasonzzpro
    Feb 08, 2021

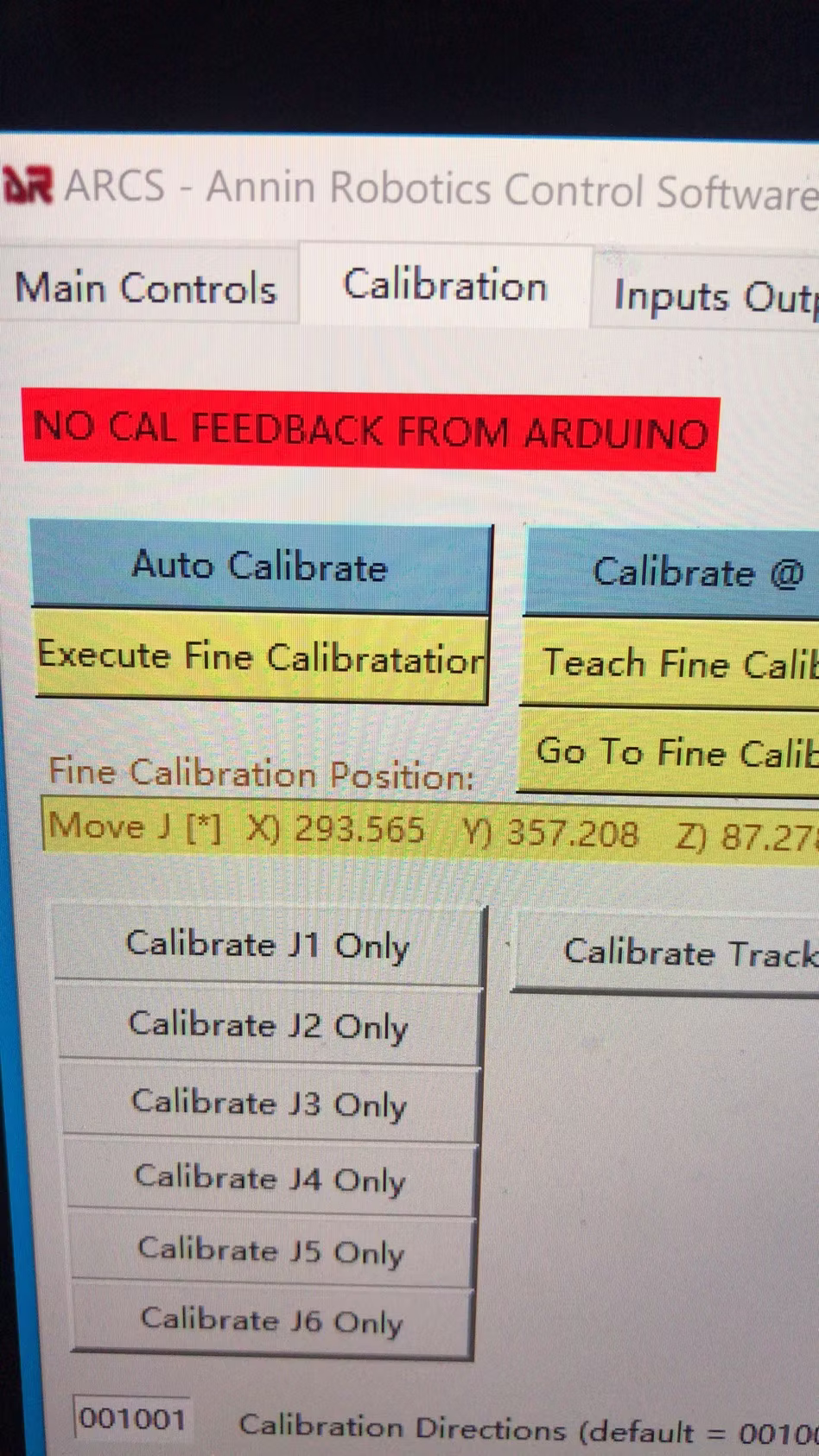

    maybe get some error??




    0
    Chris Annin
    Feb 08, 2021

    one of your limit switches is not sending back the + signal when it is in that position, please check each input at the teensy board and see if one of them is not providing + signal back to the board.

    0
    jasonzzpro
    Feb 08, 2021

    ok, thank you, i will be check

    0
    jasonzzpro
    Feb 10, 2021

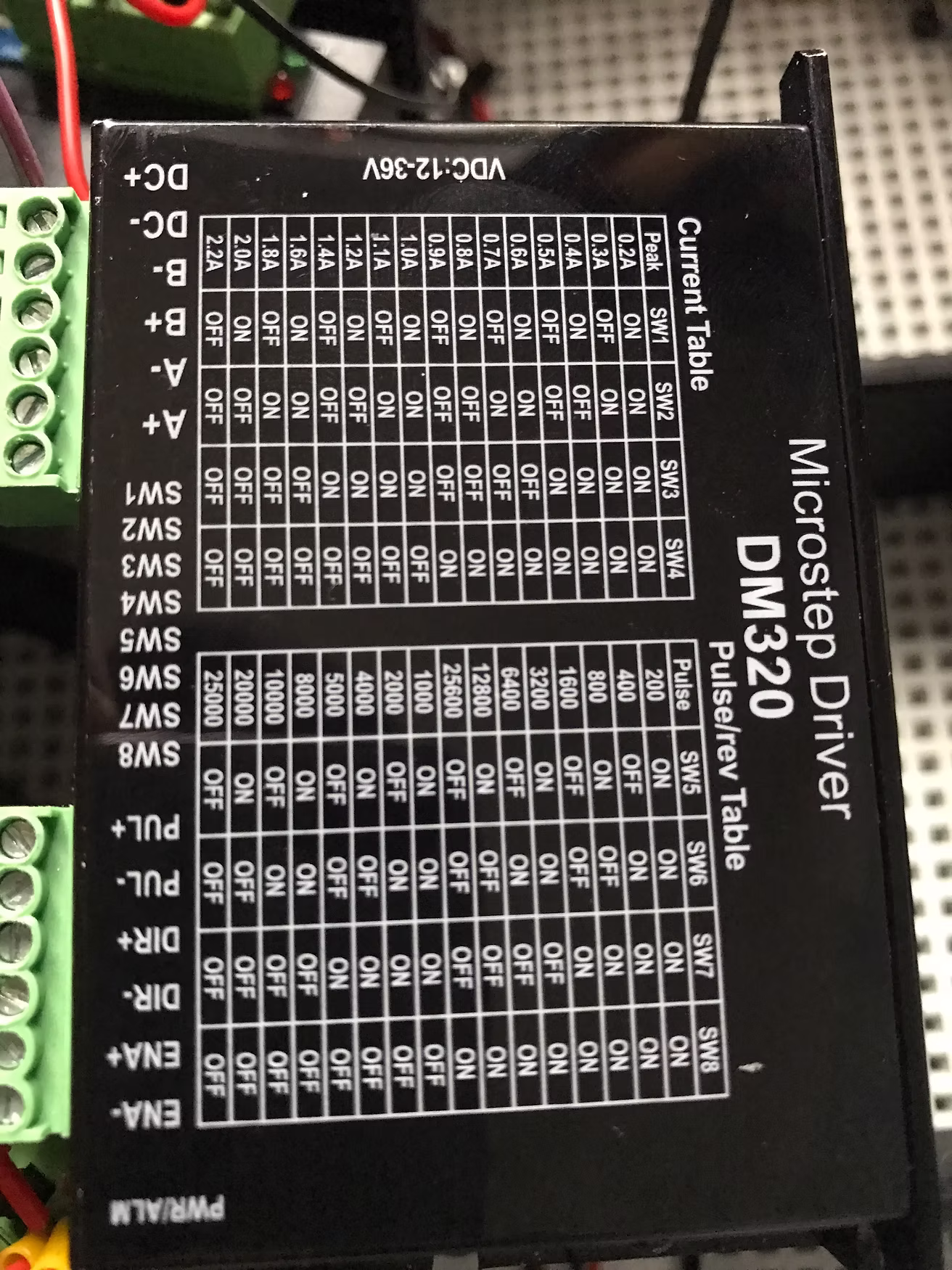

    @Chris Annin Hi Chris, The DM320T I purchased before was burnt out because of the wrong power connection. So, I use this DM320 to drive J4, so how do I set it up?
